In the process of operating the sectional warping machine, we may encounter some problems. When encountering these small defects, we will definitely check the sectional warping machine, not only the sectional warping machines but also the operation of the staff also has certain reasons. WETEX will introduce the reasons for some small defects that may occur when using the sectional warping machine may cause the problems!
1. Long and short yarns: due to the failure of the length measuring device in the sectional warping machine, or the staff making an operation error.
2. Uneven tension: This situation occurs more frequently, mainly due to the abnormal effect of the tension device in the sectional warping machine, or the improper adjustment of the parts of the equipment.
3. Twisting head and inverted broken head: the broken head device in the equipment failed, and in the process of production, the staff did not find the problem, so the brake was not carried out in time.
4. Inlay edge and convex edge: the left and right positions of the telescopic reed on the creel are not set properly, or the positioning of the inverted shaft is not accurate.
5. Oil stain: too much lubricating oil is added to the sectional warping machine, which causes the warp yarn to be contaminated with lubricating oil in the production process, resulting in oil stains.

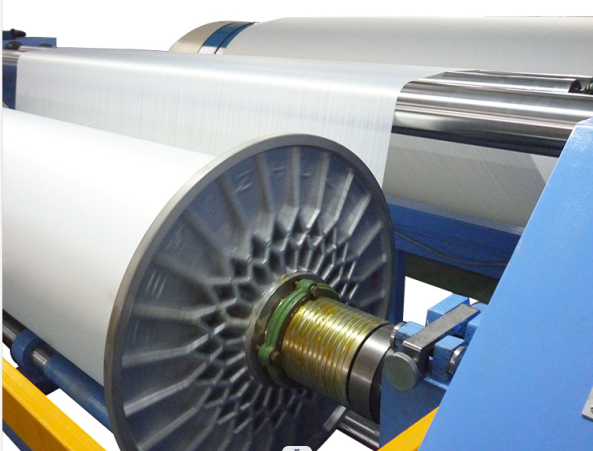

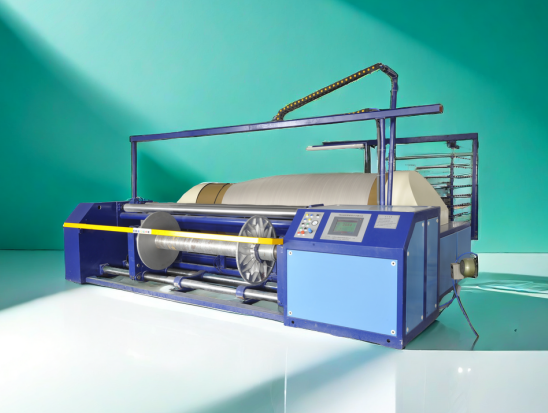

WETEX manufactures the new fully automatic high-speed sectional warping machine which adopts the inclined angle of the bevel plate to fix, and the moving speed of the fixed reed can be changed steplessly, and the moving speed of the fixed reed is controlled by the servo motor by the microcomputer, and it is very convenient to set and change, so as long as the appropriate moving speed of the fixed reed is calculated, the requirements can be met.
The new high-speed sectional warping machine is widely used in the warping of twisted chemical fiber filament fabrics and is an ideal sectional warping equipment supporting the shuttleless loom.
The problems of the sectional warping machine may not be these, there are still some problems and solutions, WETEX will continue to introduce to you. If you have any questions about the warping process, please contact WETEX for a professional warping solution.
