Suitable for warping cotton, polyester, TC, CVC, wool, silk yarns etc.

Can be well matched with water-jet, air-jet, rapier, shuttle and shuttleless looms.

Suitable for making garment fabric, trademark cloth, towel, curtain, bed sheet, sofa cloth, blanket, beach chair cloth, tent, filter cloth, geotextiles, body armor cloth, parachute cloth etc.

1. The axial displacement of warping operating board is accurately controlled by a separate servo motor. The starting point and strip position can be set automatically by pressing a button.

2. The warping operating board can move forward and backward automatically, accurately controlled by a separate step motor, to keep the same distance between space reed and yarns on the drum. In addition, the distance can be set freely according to the technological requirements.

3. Adopted the AC frequency converter speed adjustment new technology and controlled by computer to realize step less adjustment, the yarns on the drum gain the constant speed when winding and unreeling.

4. The machine is braked by an electronic- mechanic- hydro pneumatic device to drive the clamp brake. The beaming tension problems occurred in the traditional clamp type damping. The automatic control system is equipped to display and to protect the tension.

5. To adopt the microcomputer and PLC, the count of the total length, cut length, strip and broken and memory stop motion, warp stop motion and broken-end memory functions operate reliably.

6. The human-computer interfaces of warping machine and beaming machines are large screen TSS(touching sensor screen), which can offer clear pictures, large information storage and easy operation.

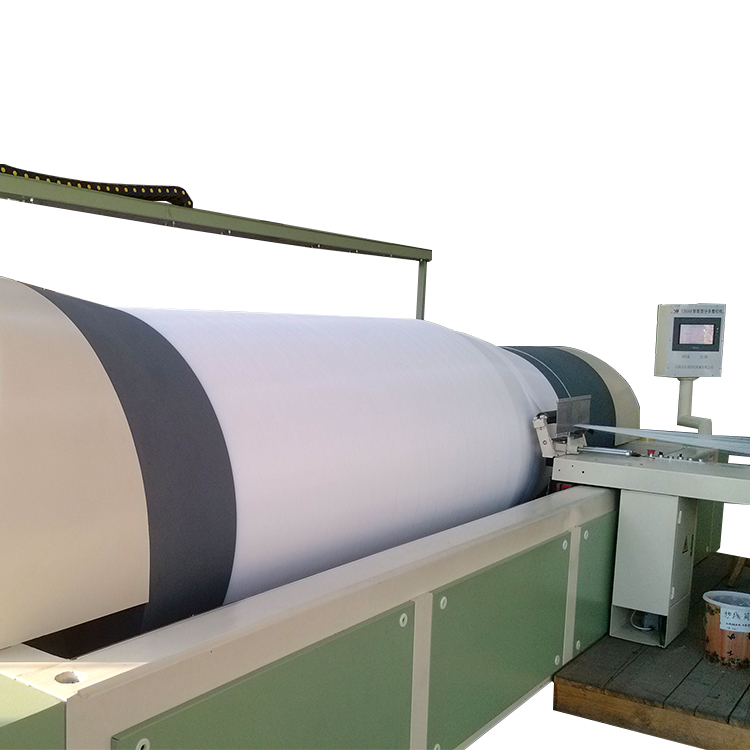

7. The precise lateral movement of warping drum on the rail is controlled by a separate servo motor, while the lease reed and yarn creel are fixed. So that the strips keep in line and yarn tension is constant during the process.

8. The joint of the high strength drum(fixed cone angle 1:6.3) and the high precision servo motor is almost perfect enough to suit any of warping.

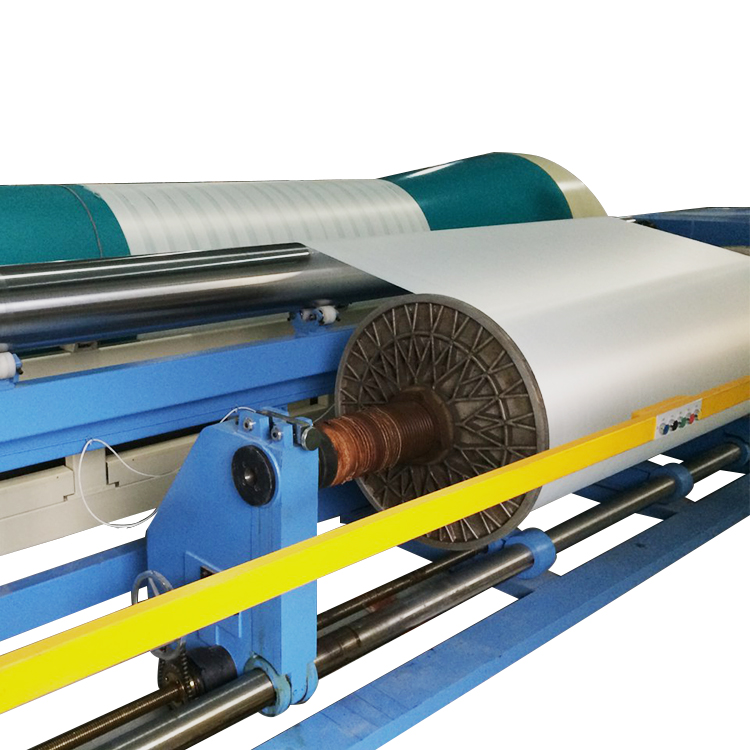

9. Two types of beaming machines are available. The first one, movable beaming machine can match several warping machines, and waxing oiling device and pressure device can be optional. The second one, fixed beaming machine to match with different types of creels, is simple structure and easy operation. The spindle number and spindle space is made according to the customers’ requirement.

10. Select the most suitable tensioner according to customer's yarn variety and product process requirements.
