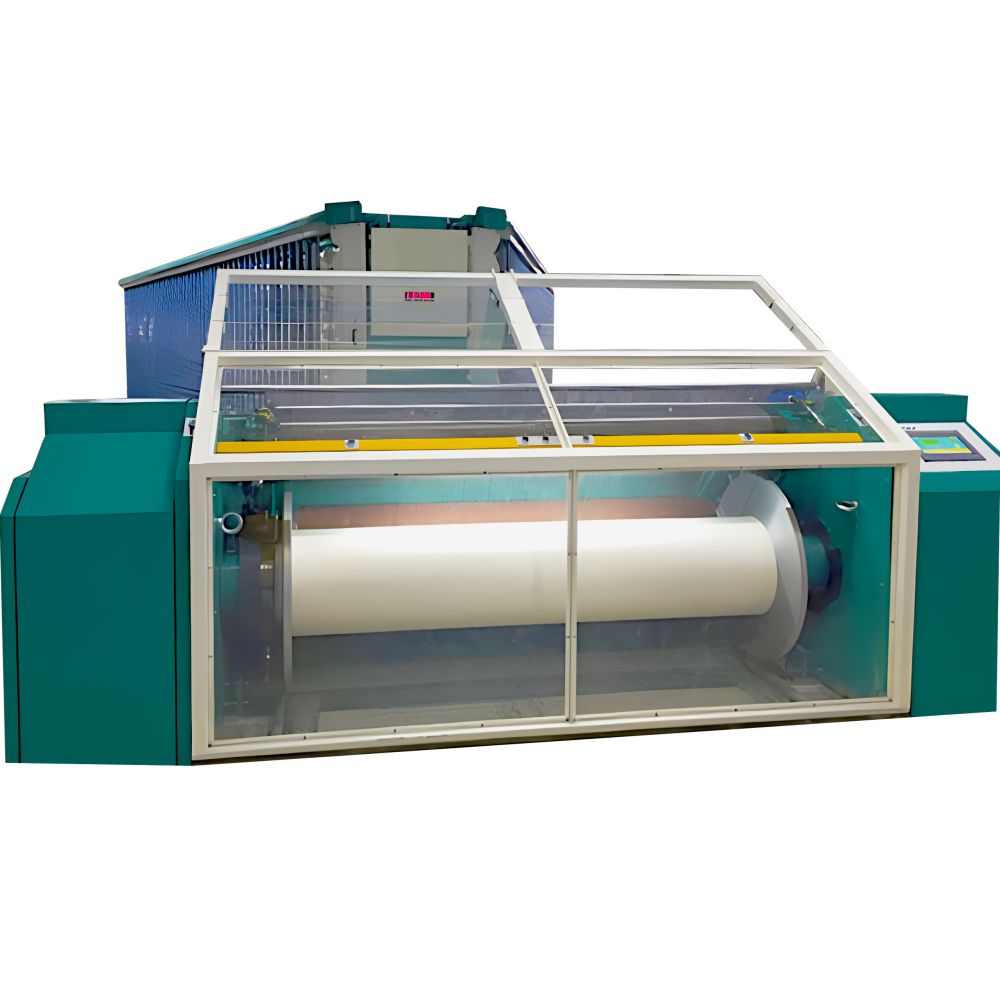

WTGA206 High Speed Direct Warping Machine is suitable for direct warping various kinds of chopped yarns.

Can be well matched with various kinds of shuttleless looms and sizing machines.

Suitable for mass production of natural or monochrome fabrics, and can also be used for yarn-dyed and non-twist synthetic filament fabrics with less complex patterns.

1. The warping beam is directly driven, the variable frequency control motor has achieved stepless setting for yarn warping speed, and the yam speed is constant.

2.Adopt press roller indirect pressure method to prevent jump in the pressing procedure and ensure the formation of warping beam would be round and uniformed. Press roller adopts hydraulic braking. The instant separation in braking avoids the friction between press roller and the surface of yarns.

3. Yarn guide roller and warping beam adopt efficient clamp braking to ensure smooth and fast braking.

4.Left and right synchronous mechanical clapping device, clapping heads adopt cone tooth form to ensure accurate alignment, so as to ensure the synchronizing performance of the rotation and braking of warping beam.

5.Adopt interconnecting length calculation of yarn press roller and warping beam. The accuracy of length counting is much higher.

6.Intermittent blowing device is equipped for expansion reed to clean reed teeth. Reed teeth can swing side to side, up and down to avoid the abrasion of reed teeth, thus maintaining yarn quality and warping quality.

7.Anti-winding device is equipped between expansion reed and yarn guide roller which can automatically repair the yarn arrangement when the machine is started, to rearrange the yarns evenly before warping begins.

8.Adopt totally closed guard device which would automatically open when the equipment stopped running to ensure the operation safer and convenient.
